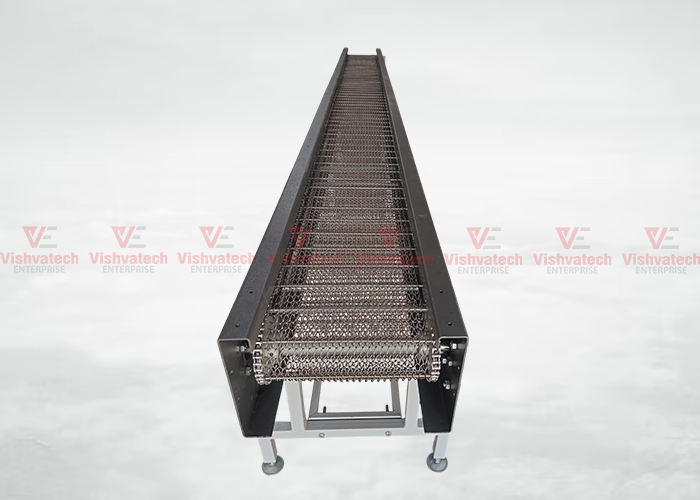

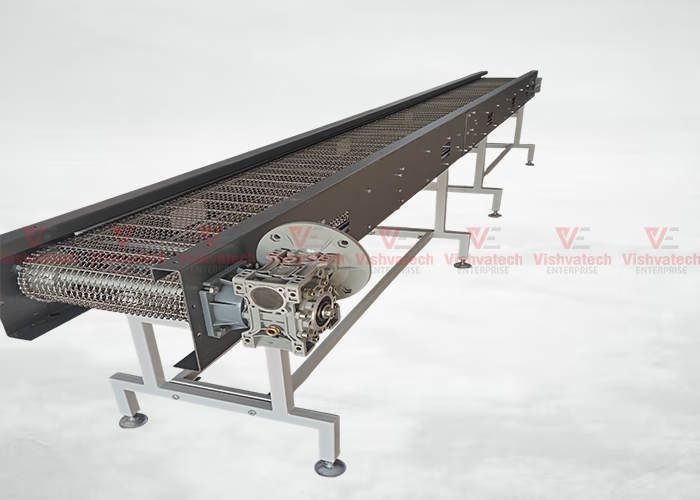

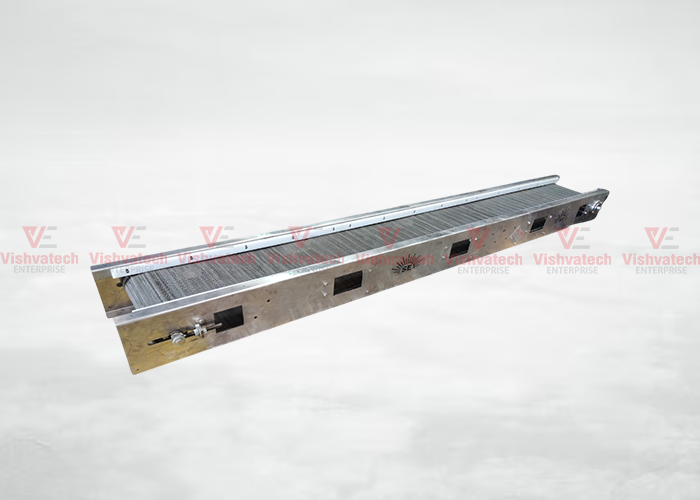

A wire mesh belt conveyor uses a woven or welded wire belt to transport materials. It allows for airflow, drainage, or heat transfer, making it ideal for applications like drying, baking, cooling, or washing parts.
Key Specifications :
| Conveyor Type | Wire Mesh Belt Conveyor |
| Belt Width | 300 mm – 1500 mm (customizable) |
| Conveyor Length | 1 meter – 30 meters (customizable) |
| Belt Type | Crimped Wire Mesh / Flat Flex / Chain-Driven Mesh |
| Belt Material | SS 304 / SS 316 / MS Galvanized / High Carbon Steel |
| Belt Pitch | 12.7 mm to 50.8 mm (½” to 2”) |
| Wire Diameter | 1.2 mm – 4 mm |
| Conveying Speed | 0.1 – 15 m/min (adjustable via VFD) |
| Drive Motor | 0.5 HP – 5 HP (SEW / Bonfiglioli / Local brands) |
| Drive Type | Direct / Chain-driven / Sprocket-driven |
| Load Capacity | Up to 100 kg/meter (depending on belt type and support structure) |
| Operating Temperature | -10°C to 600°C (depending on application and belt material) |
| Support Rollers / Slats | SS / MS with shaft & bearings |
| Frame Structure | SS 304 / MS Powder Coated / Aluminum |
| Height | Fixed or adjustable (custom) |
| Legs / Supports | Tubular or angle construction with leveling pads or caster wheels |
Optional Features :
- Side guides or rails
- Drip trays (for wash lines)

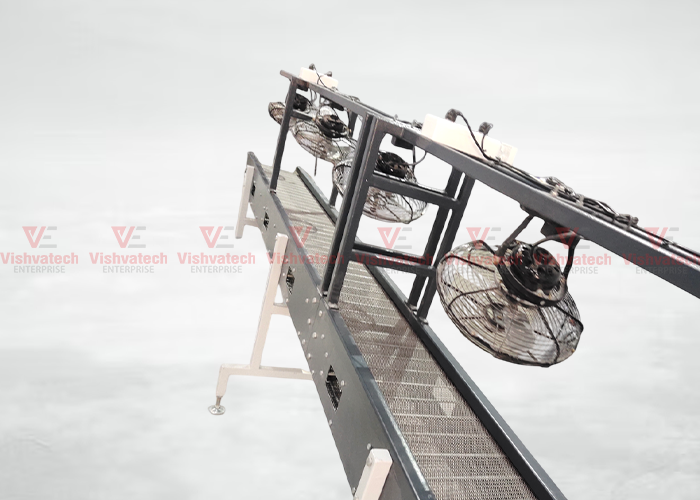

- Cooling fans or heating chambers
- VFD panel for speed control
- Temperature sensors (for heat zones)
- Infeed hopper and outfeed chute
- Chain edge belt (for high-load or side drive)
