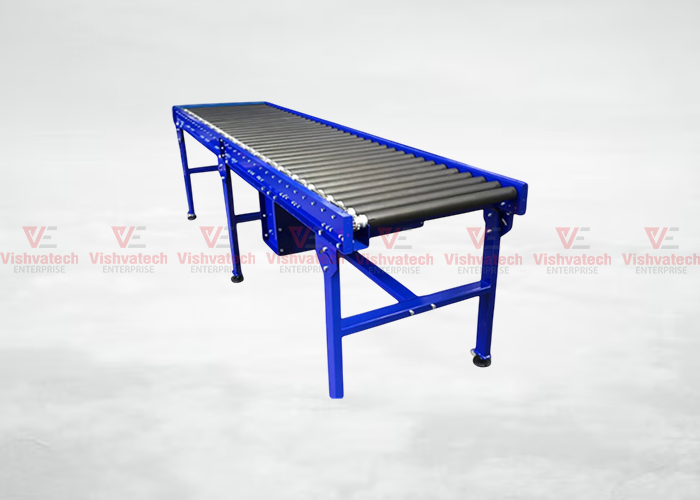

A roller conveyor is a mechanical system consisting of a series of rollers supported within a frame that allows items to roll from one point to another. It can be gravity-driven or motorized depending on the application.
Key Specifications :
| Conveyor Type | Gravity Roller / Motorized Roller / Inclined / Curved |
| Roller Diameter | 38 mm / 50 mm / 76 mm / 89 mm / 114 mm (as per load) |
| Roller Material | Mild Steel / SS 304 / Aluminum / PVC / Zinc-Plated |
| Roller Pitch (Spacing) | 75 mm / 100 mm / 150 mm / 200 mm |
| Roller Length | 300 mm – 1500 mm (based on product width) |
| Frame Construction | MS Powder Coated / SS 304 / Aluminum Channel or Angle Frame |
| Conveyor Width | 400 mm to 1200 mm (custom as per application) |
| Conveyor Length | 1 m to 30 m or more (modular design) |
| Type of Drive | None (Gravity) / Chain Drive / V-Belt / Poly-V Belt |
| Motor Power (if powered) | 0.5 HP to 5 HP (AC Motor with Gearbox / Drum Motor) |
| Speed (if powered) | 0.1 m/s to 1.5 m/s (adjustable with VFD) |
| Load Capacity | 20 – 200 kg/meter (depending on roller size and frame) |
| Support Legs | Fixed / Adjustable Height with Leveling Pads or Castors |
| Inclination Angle | 2° to 7° (for gravity flow) |
| Operating Mode | Continuous / Start-Stop / Manual Push (for gravity type) |
| Finish | Powder-coated / Galvanized / SS Mirror Finish (for food/pharma) |
Optional Features :
- Side guides or rails
- Turntables or curve sections
- Roller brakes or stoppers
- Lifting table integration
- Load sensors or counters
- Emergency stop switches
- Caster wheels for mobility
- Skirt board for center alignment
